$180.00

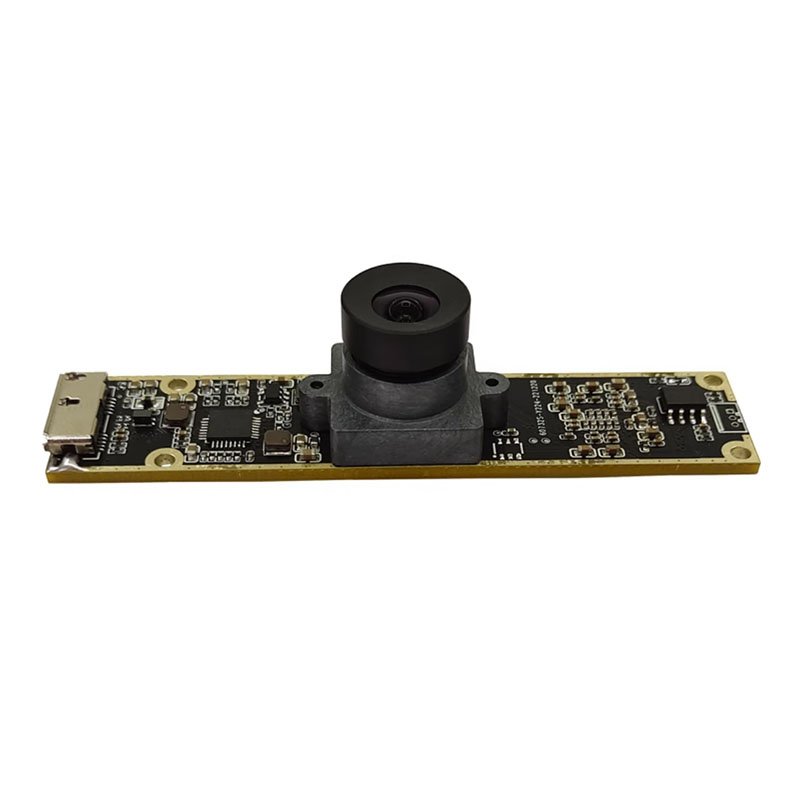

Factory Price 2MP Monochrome Coloful USB3.0 Type-C 1080P 120FPS Global Shutter Camera Module Free Drive
Specification:
| Item | Parameter | ||
| Sensor | 1/2.6 inch | ||
| Pixels | 1920(H)*1080(V) | ||
| （MJPEG） Resolution & Frame rate (MJPEG) |
1920*1080:120FPS, 1280*720:180FPS,640*480:180FPS | ||
| Resolution & Frame rate (YUY2)（YUY2） | 1920*1080:5FPS, 1280*720:10FPS,640*480:30FPS, | ||
| Pixel Size | 3µm x3µm | ||
| Sensitivity | 2800mV-sec @530nm | ||
| Compression format | MJPEG / YUV2（YUYV） | ||
| Assembly technology | SMT | ||
| Focus type | Fixed focus/ Auto Focus | ||
| Object distance | 10CM-100M (Optional) | ||
| Definition of center | TBD | ||
| S/N ratio | TBD | ||
| Max Dynamic Range | TBD | ||
| Shutter Type | Global rolling shutter / Frame exposure | ||
| Interface | USB3.0 High Speed | ||
| White Balance | (Automatic) | ||
| Gain Control | (Automatic) | ||
| Light Control | (Automatic) | ||
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/Whitebalance/Exposure | ||
| Lens parameter | Size: 1/2.6, FOV: 2.1mm, IR Filter: 650±10nm | ||
| Indicator board power supply port | / | ||
| Power supply and interface | USB BUS POWER 4P-2.0mm | ||
| Power Consumption | DC5V | ||
| Current | ＜100mA | ||
| size | W18mm X 80mm | ||
| Working Temperature | -30°C to 70°C | ||
| Storage temperature | -10°C to 60°C | ||
| USB usb cable | 1M(2M) | ||
| Working humidity | 15%-85% | ||
| Support OS | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）,MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
| Sensor | 1/6" |
|---|---|
| FPS | 120FPS |
| Resolution | 1920×1080 |
| Size | 80X18MM |
| Output | USB3.0 |
